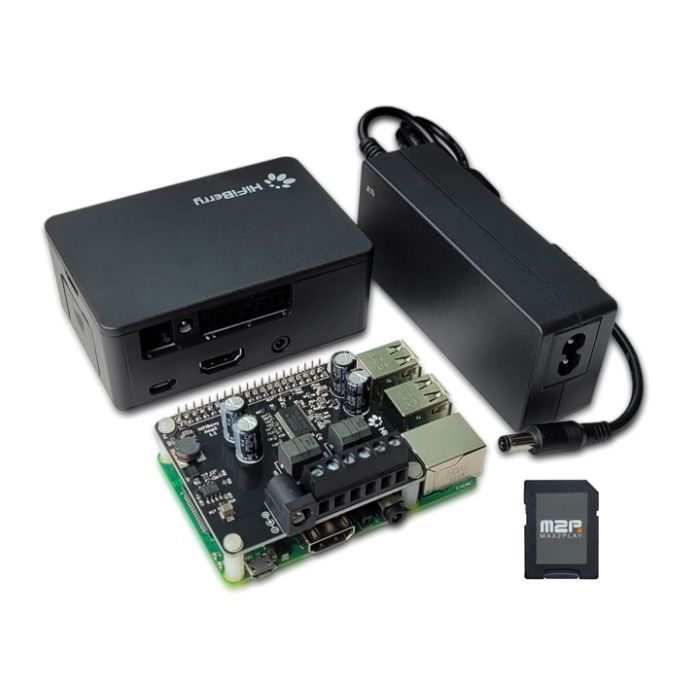

HiFiBerry AMP2 Bundle incl. Raspberry Pi and Max2Play

Application: High-end solution for multiroom audio installations. With this bundle you receive all necessary components to operate virtually any passive speakers in the room of your choice.

For a detailed example for using this bundle, check out this article about using Max2Play in your bedroom and bathroom!

Availability: 1 In stock

From: €139.99

To: €229.94

Price as configured: €139.99

Incl. VAT
delivery time: usually dispatched within 24 hours
plus shipping fee

* Required Fields

Price as configured: €139.99

Incl. VAT
delivery time: usually dispatched within 24 hours
plus shipping fee
HifiBerry

Use the Multiroom Audio Configurator to get the right hardware

Direct shipment after we receive payment Delivery

Hardware on display tested and optimally supported by Max2Play

Professional Advice
+49 341 35540902 (Mo-Fr 9AM - 5PM)

Service & Support

Max2Play Installation Service
Every Max2Play system image is set up exactly according to the individual order: country, language, sound card and license. This way, Max2Play can guarantee a satisfying and hassle-free experience.

Max2Play Support
We offer support for all topics regarding Max2Play on our website:

Product Description

Details

The centerpiece of this of this bundle is the AMP2. The AMP2 by HiFiBerry, in cooperation with the Raspberry Pi 2 or 3, connects the highest sound quality with the smallest dimensions and premium-quality design. The ideal solution for audio applications in any system. The HiFiBerry AMP2 is a high performance, highly efficient class-d-digital amplifier for the Raspberry Pi 2B or 3B. Connected to the Raspberry, it is ready for use out of the box. Not only does it boost the audio qualities of the Pi immensely, it is also a high quality digital-analog-solution with a premium DAC built-in. No further DAC's or sound cards necessary. In connection with the Max2Play image, the device becomes a true allrounder. Preinstalled applications include Squeezebox-Server, XBMC/Kodi, multiple audioplayers and much more. The delivered power supply comes with an EU plug for electrical sockets

Here, you can find an overview of all the possible functions of Max2Play and information about the applications of them.

AMP2 Overview

  • GPIO-module for direct attachment onto the Raspberry Pi
  • Class-D digital amplifier, max. 60 W at 4-8 Ω
  • DAC-conversion with up to 192 kHz sample rates
  • Integrated DAC
  • Fully digital audio processing
  • Powerful voltage controller, also supplies the Raspberry, just one power supply (12–18 V DC) required for both boards

Components

  • Raspberry Pi
  • Power Supply 12.0V / 6.0A
  • HiFiBerry AMP+
  • 8GB MicroSD-Card with Max2Play
  • Case


Raspberry Pi 4B (4GB RAM)
Raspberry Pi 4 Case matt-black
The new Raspberry Pi 4B (4GB version) comes with 4GB RAM, 1.5 GHz processor power, Bluetooth 5.0 as well as Gigabit Ethernet and offers all the popular features of its predecessors with some improvements. Black case for the Raspberry Pi 4, suitable for the allo Piano DAC, HiFiBerry AMP2, Digi+, DAC+, DAC+ Pro and DAC+ Light, as well as for the AroioDAC from Abacus.


Raspberry Pi 3
Raspberry Pi 3B+
The Raspberry Pi 3 Model B creates a combination of speed, features and near-infinite potential for personal, enthusiast, and educational projects. Bluetooth and WiFi are onboard features and do not require additional hardware. The Raspberry Pi 3 Modell B+ with improved WiFi- and Bluetooth modules. A powerful combination of performance and functionality, based on the newest Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC with 1.4 GHz.

Amp Power Supply 12V / 6A
Amp Power Supply 19V / 3.15 A
For standard performance of this bundle compontents we suggest this amp power supply.
This power supply comes with an EU plug
This power supply is optimal to gain peek performance of the HiFiBerry AMP2.
The power supply is especially recommended for speakers with more than 4 ohms impedance and was comissioned especially for our Amp HATs.

HiFiBerry AMP2
Case in Black, Matt
The new generation of HiFiBerry amplifiers with stereo HD sound and up to 60 watts output power lets you use nearly any passive speakers available thanks to the improved support of between 4 and 8 ohms impedance. This case comes in black matt with a HiFiBerry brand for the Raspberry Pi 2 or 3. Simply stamp out the cover of the case to access the connectors of the prefered sound card.

Selection of the Max2Play License

With the purchase of this product you receive an additional Max2Play premium license (3 month term)*. You also have the possibility to purchase a 1-year, 2-year or 5-year license. The premium license offers further plugins for more features and extensive support.

*Important! There is no automatic extension of your license. You are free to renew it during or after the license period. Owners of the Max2Play Premium License get exclusive news about Max2Play, concerning new features and Plugins. The amount of Plugins is continuously growing. Here you will find an overview of all the Max2Play Plugins

Additional Information

Additional Information

Gewicht 1
